Commercial Security Camera Installation Rapid City – Wendy’s Project

Commercial Security Camera Installation Rapid City – Project Overview

Commercial security camera installation in Rapid City is essential for restaurants, retail businesses, and high-traffic properties that need reliable surveillance and clear visibility around their buildings.

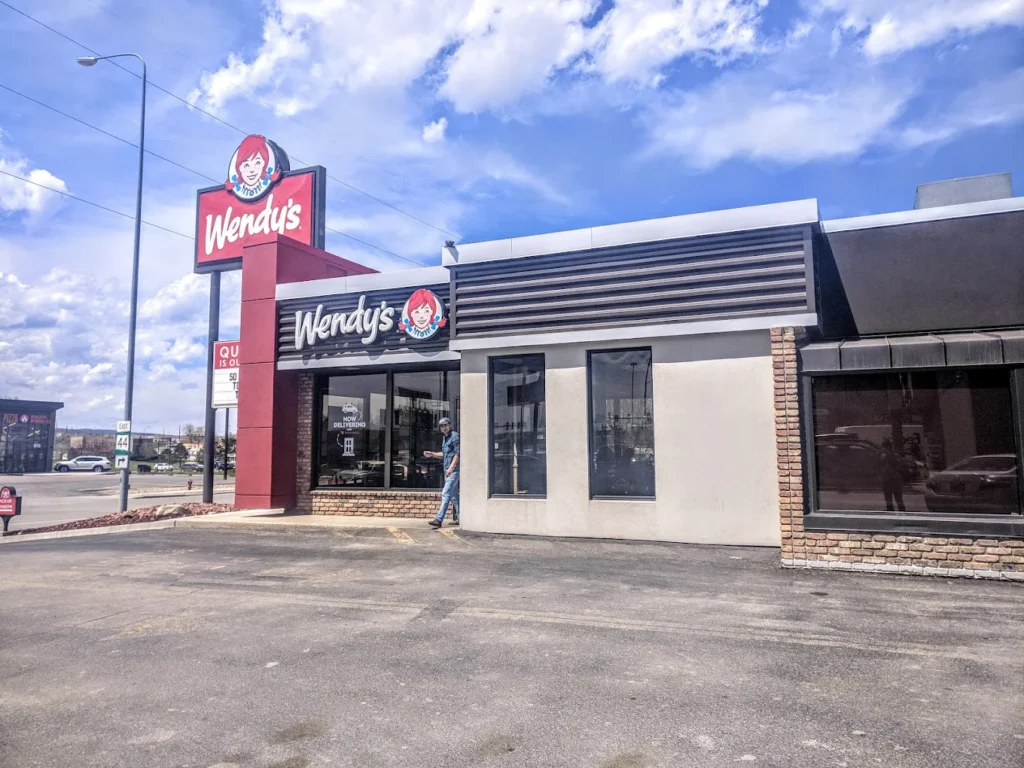

For this project, Brink Design completed a full exterior surveillance upgrade at the Mountain View Wendy’s location in Rapid City, South Dakota. The objective was to improve camera coverage, modernize recording infrastructure, and ensure dependable monitoring of high-traffic areas including the drive-thru, parking lot, building perimeter, and roofline approaches.

This commercial security camera installation in Rapid City focused on durability, professional cable management, and long-term serviceability rather than simply mounting cameras to a wall.

Scope of the Commercial Security Camera Installation

The project included several upgrades designed to strengthen the restaurant’s exterior security system.

Work Completed

Replacement and repositioning of exterior surveillance cameras
Installation of an exterior audible alert and deterrent device
Surface-mounted conduit runs to protect outdoor cabling
Integration into an upgraded DVR and network switching system
Weatherproofing of exterior cable penetrations
Final camera aiming, system testing, and recording validation

These improvements ensure the Rapid City commercial security camera system can reliably capture activity around the property day and night.

Camera Placement Strategy for Restaurant Security

Restaurants present unique surveillance challenges due to drive-thru lanes, customer parking, and multiple exterior elevations.

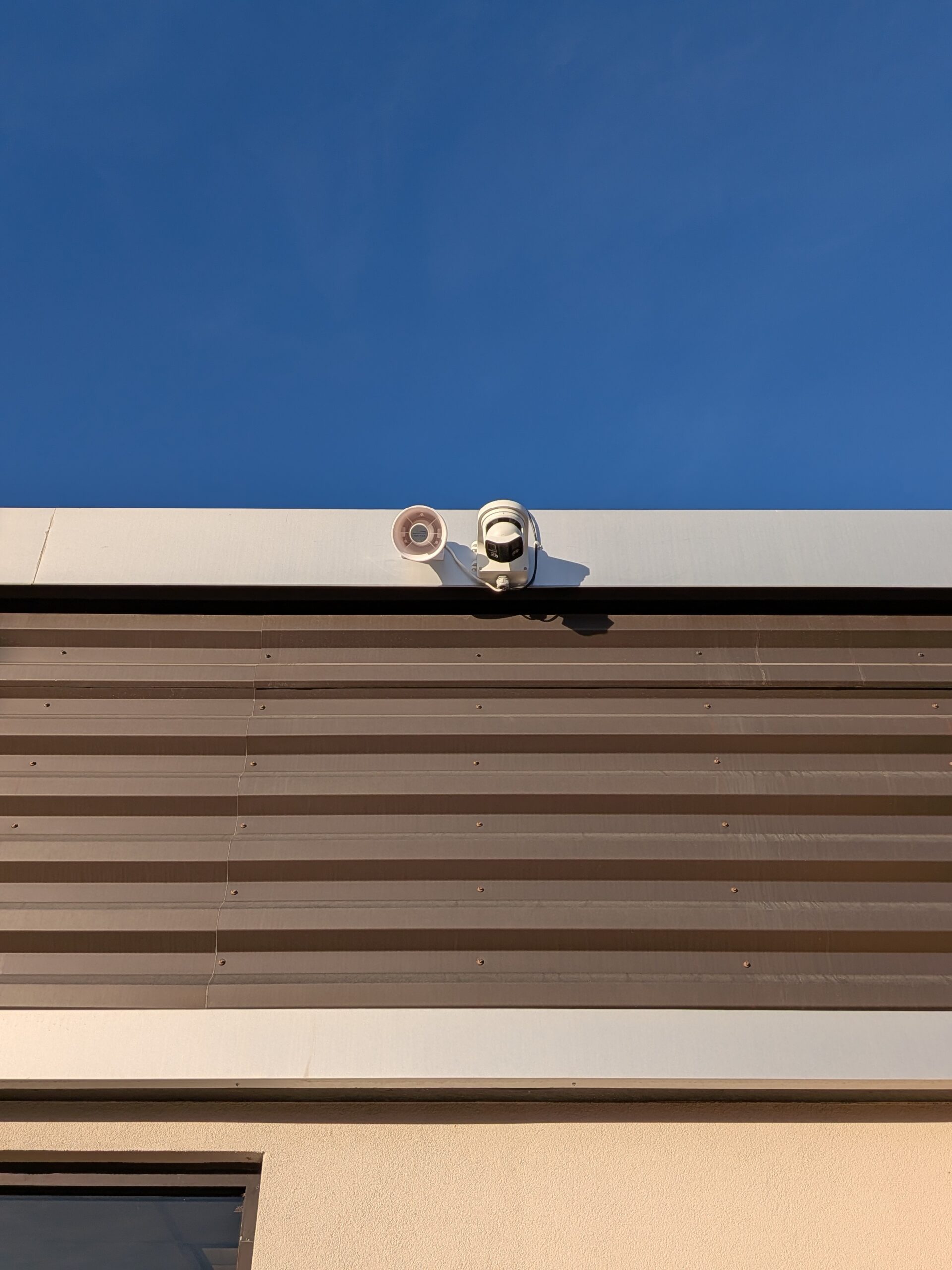

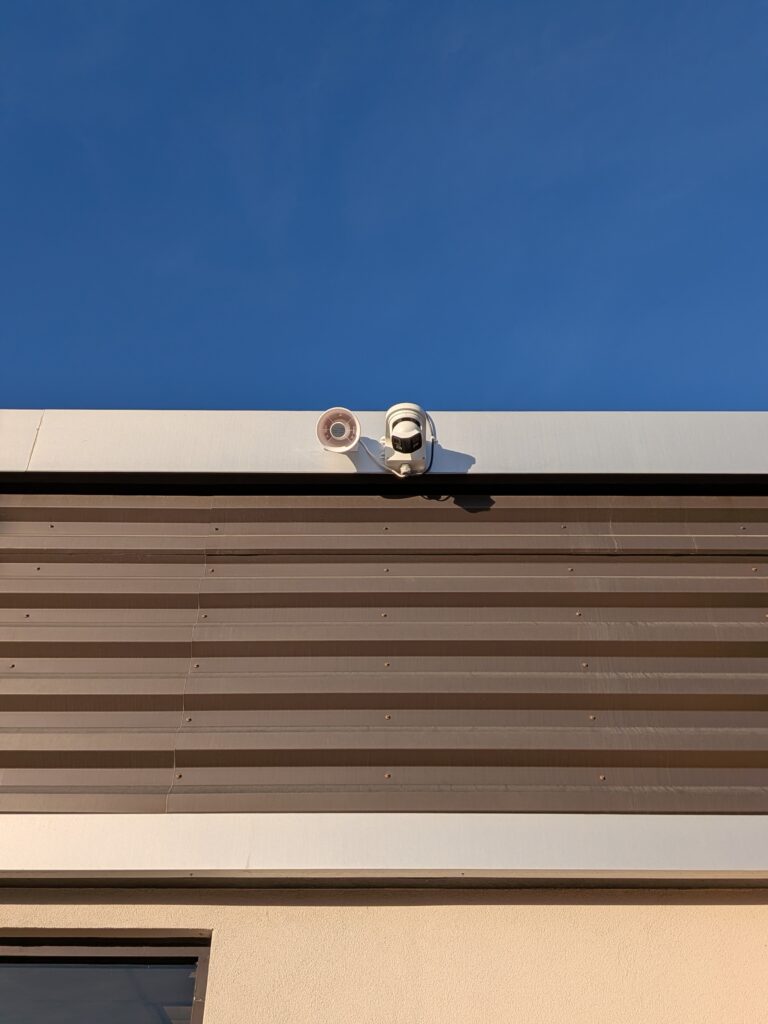

Elevated Perimeter Mounting

Cameras were installed high on the building facade to achieve several advantages:

• Reduced vandalism risk
• Improved wide-area visibility
• Better angles for vehicle identification
• Coverage of roofline and exterior equipment areas

Rather than drilling directly into brick wherever possible, cameras were mounted on the building’s architectural vertical facade elements.

This approach:

• Simplifies anchoring
• Prevents long-term masonry damage
• Creates a cleaner finished appearance

Proper placement is one of the most important factors in any commercial security camera installation in Rapid City.

Audible Alert & Deterrent System

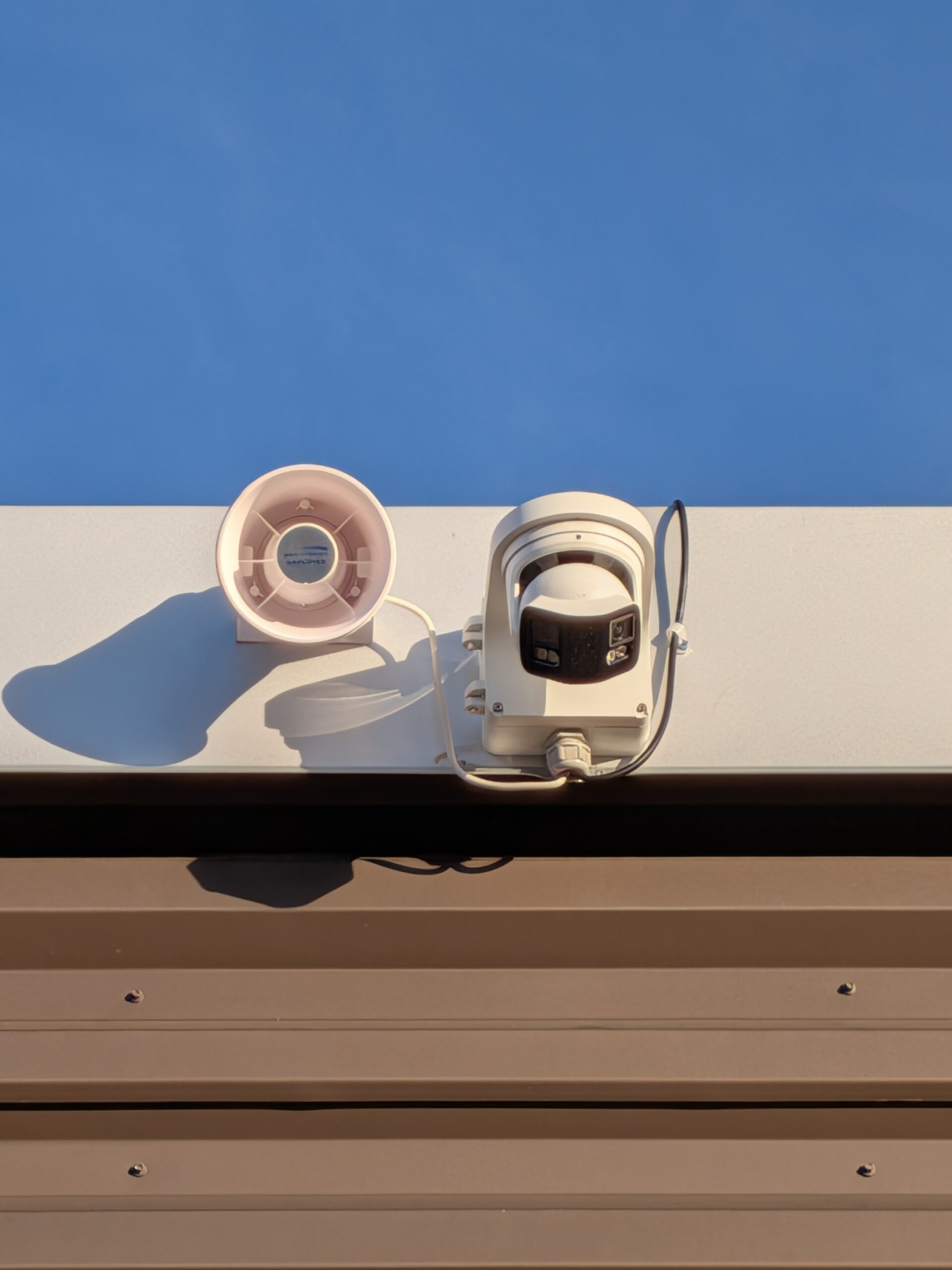

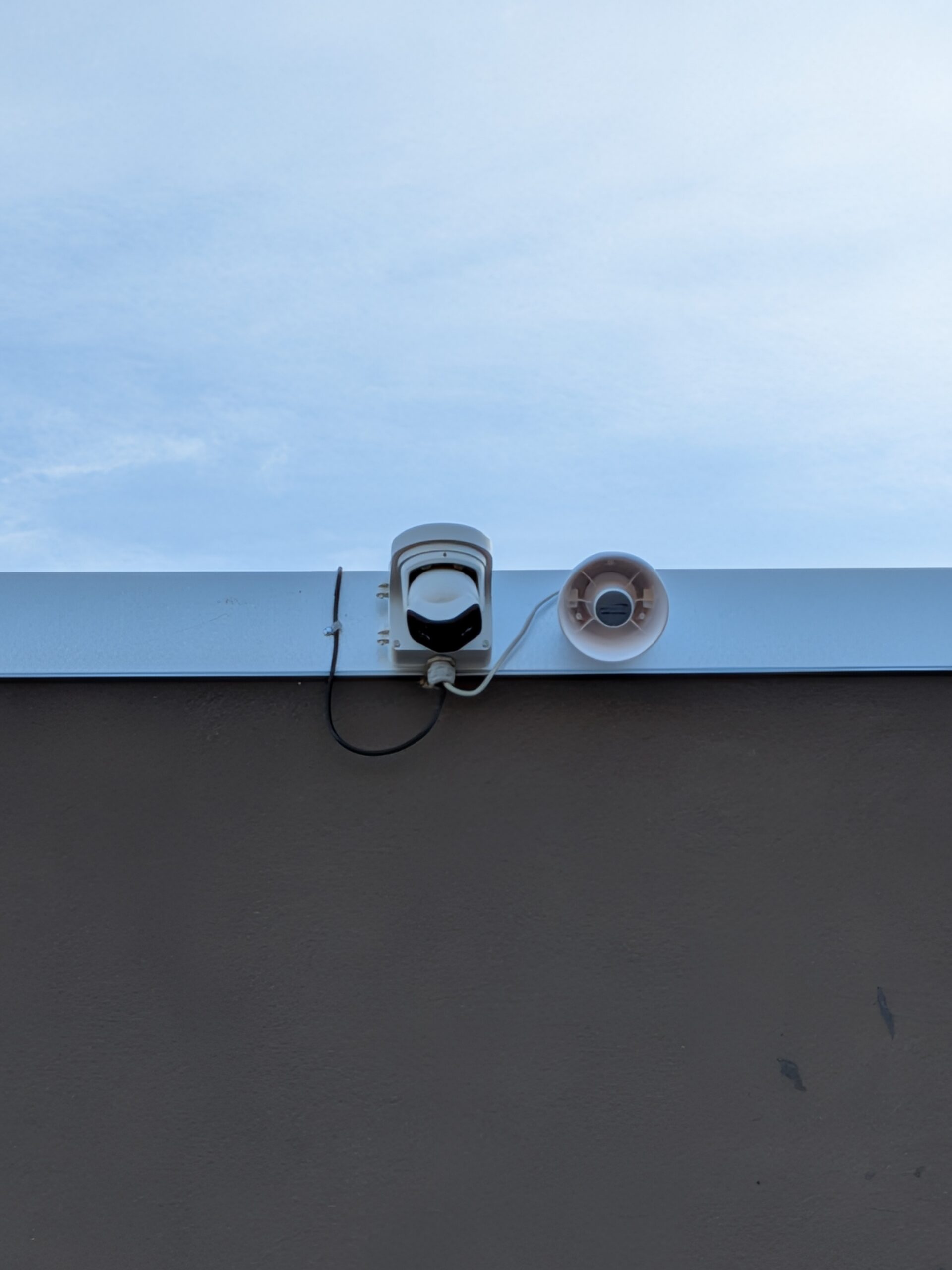

Alongside the surveillance cameras, a weather-rated horn speaker was installed.

This device allows:

• Remote live deterrent capability
• Audible alerts when needed
• Additional loss-prevention support for after-hours monitoring

For quick-service restaurants, visible cameras combined with deterrent hardware can significantly reduce loitering and nuisance behavior.

Structured Cabling & Exterior Conduit

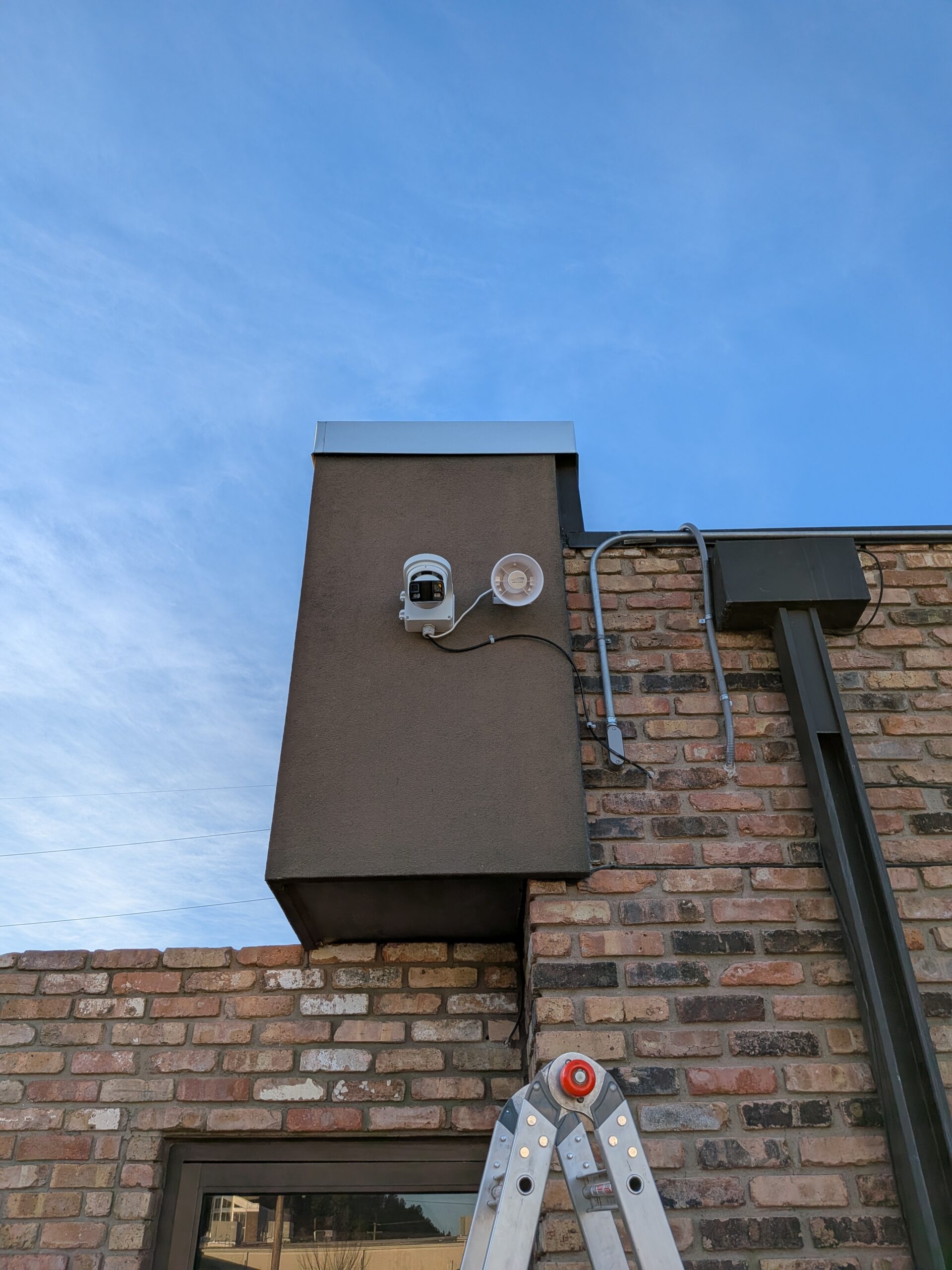

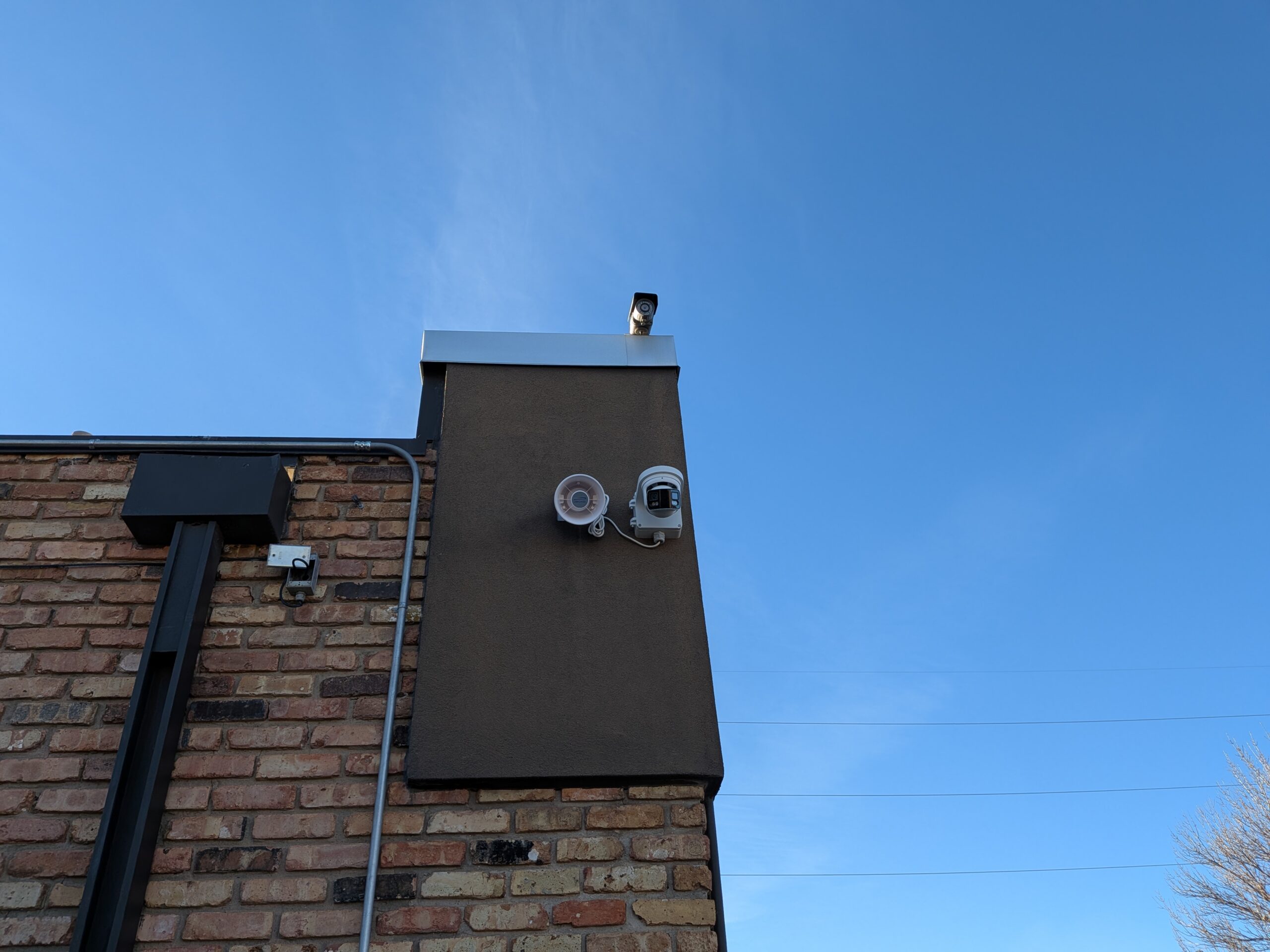

Exterior camera wiring was routed using surface-mounted metallic conduit.

This provides several long-term advantages:

• Protection from weather exposure
• Resistance to tampering or vandalism
• Clean professional appearance
• Code-compliant cable routing

All penetrations were sealed and weatherproofed, and cable entry points were strain-relieved to prevent sagging or wind damage.

This level of infrastructure separates a temporary installation from a permanent commercial security camera deployment.

Network & Recording Infrastructure

Inside the building, the surveillance system was integrated into a dedicated recording and network stack.

Infrastructure Installed

24-port managed network switch
Segmented camera VLAN labeling
Rack-mounted DVR with high-capacity storage
Organized patching and cable labeling

Many surveillance failures occur because of poor network design rather than poor cameras. Proper infrastructure ensures reliable recording and long-term serviceability.

The system is now:

Structured
Clearly labeled
Easy to maintain
Expandable for future cameras

Why Restaurants in Rapid City Need Security Cameras

For restaurants like Wendy’s, surveillance systems provide more than theft protection.

They support:

Employee safety
Drive-thru dispute resolution
Slip and fall documentation
Parking lot monitoring
Insurance and liability protection

A well-installed commercial security camera installation in Rapid City ensures that footage retrieval is quick, reliable, and usable when incidents occur.

Final Result

The Mountain View Wendy’s location now benefits from a professionally installed surveillance system designed for long-term reliability.

The completed installation includes:

Elevated perimeter cameras with optimized viewing angles
Visible deterrent hardware
Clean conduit-protected exterior cabling
Organized interior rack infrastructure
Reliable recording and storage capacity

This project reflects the type of commercial security camera installation Brink Design delivers throughout Rapid City and the Black Hills, helping restaurants and businesses protect their property with dependable surveillance technology.
